Mechanism Guide

Swivel-Tilt with Tilt Lock

1. Tension Control Knob allows for greater spring tension control for a firmer or softer tilting motion. Turn counterclockwise to increase tension, clockwise to decrease tension.
2. Seat Height/Tilt Lock Lever raises or lowers seat to desired height and locks seat into starting position in one convenient mechanism. To raise, simply lift weight off seat and pull upward on lever until seat reaches a comfortable height. To lower height, lift upward on lever while seated and release to lock seat into desired position. To lock chair-tilt into starting position, push lever inward. To release tilt lock mechanism and free-float, simply pull lever outward.
3. Seat Slider adjustment provides 2½” front and back horizontal seat depth adjustment. To operate, lift up on adjustment bar and move seat forward or backward until desired depth is achieved. Release bar and seat will lock into position.

Download

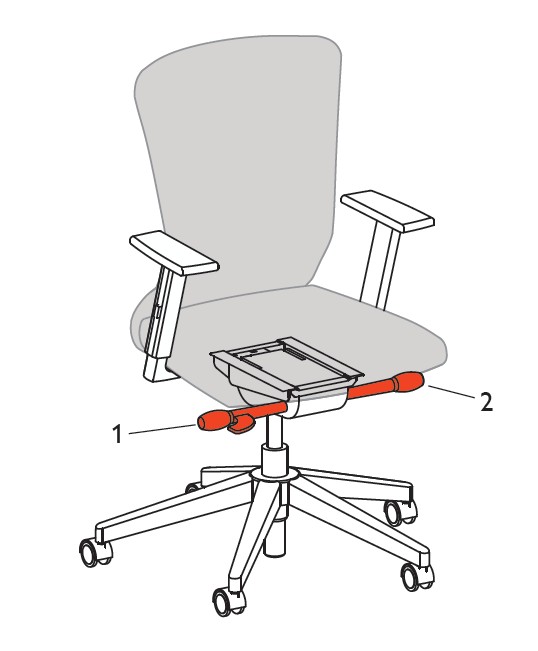

Synchro Knee-Tilt

1. Seat Height/Tension Control easily raises or lowers seat to desired height and allows for more precise spring tension adjustment. To raise, simply lift weight off seat and pull upward on handle until seat reaches a comfortable height. To lower, lift upward on handle while seated and release to lock seat into desired position. To adjust tension for a firmer or softer tilting motion, turn knob counterclockwise to increase tension, clockwise to decrease tension.
2. Multi-Position Tilt Lock Lever secures seat into multiple tilt positions or allows seat to free-float. To secure chair at a particular tilting angle, adjust chair to desired position, then turn lever clockwise to lock into place. To release, turn lever counterclockwise, then lean into chair back. This mechanism also includes an anti-kick feature that prevents chair back from jolting forward when Tilt Lock is released.
3. Optional Seat Slider provides 2½” front and back horizontal seat depth adjustment. To adjust, lift lever up from the seated position and move seat to desired location. Release lever to lock into place.

Download

Synchro-Tilt

1. Tension Control Knob allows for greater spring tension control for a firmer or softer tilting motion. Turn counterclockwise to increase tension, clockwise to decrease tension.
2. Seat Height adjustment easily raises or lowers seat to desired height. To raise, simply lift weight off seat and pull upward on lever until seat reaches a comfortable height. To lower, lift upward on lever while seated and release to lock seat into desired position.
3. Multi-Position Tilt Lock Lever allows back to be secured into a tilt position, locked entirely, or enables it to free-float. To secure chair into tilted position, adjust back to a moderately reclined angle, then push downward on lever to middle position to lock into place. To lock at an upright angle, pull lever into uppermost position. To release and free-float, push lever downward to its lowest position.
4. Optional Seat Slider adjustment provides 2½” front and back horizontal seat depth adjustment. To operate, lift up on adjustment bar and move seat forward or backward until desired depth is achieved. Release bar and seat will lock into position.

Download

Task Intensive

1. Tension Control Knob allows for greater spring tension control for a firmer or softer tilting motion. Turn counterclockwise to increase tension, clockwise to decrease tension.
2. Front Tilt Stop Lever allows additional forward tilt for optimum task performance. To operate, first release Tilt Lock with Infinite Lock, then tilt seat backward slightly and push lever downward and back. To return chair to upright position, tilt seat back once again and pull lever forward and up to its original position.
3. Tilt Lock with Infinite Lock Lever secures seat into any tilt position or allows seat to free float. To lock into a particular position, tilt seat to desired angle and press down on lever. To release, simply lift lever up.
4. Seat Height adjustment easily raises or lowers seat to desired height. To raise, lift weight off seat and pull up on lever until seat reaches a comfortable height. To lower, lift up on lever while seated and release to lock seat into desired position.
5. Back Angle with Infinite Lock Lever provides precise back angle control. To adjust, lift upon lever until desired back angle is reached. To freely make adjustments without touching lever, move lever into highest position, adjust back angle, then push lever downward to lock into place.
6. Optional Seat Slider adjustment provides 2½” front and back horizontal seat depth adjustment. To operate, lift up on adjustment bar and move seat forward or backward until desired depth is achieved. Release bar and seat will lock into position.

Download

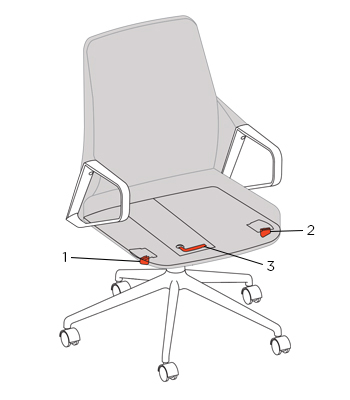

Weight-Activated Synchro-Tilt

1. Seat height adjustment easily raises or lowers seat to desired height. To raise, lift weight off seat and pull up on lever until seat reaches a comfortable height. To lower, lift up on lever while seated and release to lock seat into desired position.
2. Tilt-lock lever allows back to be secured into a tilt position, locked entirely, or enables it to free-float. To secure chair into tilted position, adjust back to a moderately reclined angle, then twist backwards on lever to lock into place. To release and free-float, twist lever forward. Chair tilt may also be locked upright at starting position, if desired.
